Level Up Pro
Level Up Pro is the full-featured sigmaIQ levelling and power module. It pairs over Bluetooth LE with the oneView app to deliver accurate levelling, Progressive Industries EMS integration, RV battery monitoring, internal temperature and humidity, and a battery-backed event log — from a rechargeable, self-contained device powered by USB or 12 VDC.
Plug in your EMS, pair your phone with a 4-digit PIN, and every system is one tap away.
Key Benefits
- Built-in 600 mAh Li-ion + replaceable 800 mAh ICR14500
- USB and 12 VDC external power
- Bluetooth LE, 4-digit PIN pairing
- Multi-trailer profile support
- Progressive EMS-HW30C / HW50C ready (cable included)
- RV battery monitoring — SLA, AGM, Li-ion
- Internal temperature (−40 to +125 °C) and humidity (0–100 %RH)
- Battery-backed real-time clock
- Park-mode motion tracking
- Event log: Attention, Trouble, Critical
- Eight mounting orientations
- Power and reset switches
Dashboard at a Glance
One screen, every Level Up Pro system. Level state, EMS summary, internal sensors, motion, battery, and an event-count tile — each tappable to drill into detail.
- Level State card — green / out-of-level indicator
- EMS Summary — pedestal and RV power status
- Internal Sensors — temperature and humidity
- Motion — 10-minute rolling severity chart
- Battery — voltage and state of charge
- Events — Log / Attention / Trouble / Critical counts
Accurate, Repeatable Levelling
Dual-axis side-to-side and front-to-back tilt with live pitch and roll graphs in degrees. Hitch-height Set and Recall make hookup repeatable. Park mode arms motion detection and bins movement over a 10-minute rolling window so you know if a sudden jolt is worth a look.
- Eight mounting orientations
- Units: mm, cm, inches
- Resolutions: 5/10/20/25 mm, 0.5/1.0/2.0/2.5 cm, 0.25/0.50/0.75/1.0 inch
- Hitch-height Set / Recall
- Park mode with motion-severity bins (Green <5, Yellow 5–7, Orange 7–10, Red >10)
AC Power Monitoring (EMS)
Level Up Pro plugs straight into a Progressive Industries EMS-HW30C or EMS-HW50C — optically isolated, cable included. Two RJ-11 jacks pass through to the EMS remote display. Level Up auto-detects the model. Monitoring is passive: Level Up Pro reports, it does not control the EMS.
- L1 / L2 voltage 103–132 VAC
- Current to 30 A (HW30C) or 100 A split (HW50C)
- Power to 3,600 W (30 A) or 12,000 W (50 A)
- Frequency 51–69 Hz
- Full E0–E10 + E89 / E99 fault codes with descriptions
- Rolling 24-hour uptime graph
DC Battery Monitoring
When Level Up Pro is wired to 12 VDC, it grades the RV battery by chemistry — SLA, AGM, or Li-ion — with colour-coded Excellent / OK / Low / Shutdown bands and a voltage graph over time. Pick the chemistry in the setup wizard and the thresholds adjust to match.
- Sealed Lead Acid — Excellent ≥12.8 V, Low <12.7 V, Shutdown ≤10.5 V
- Absorbed Glass Mat — Excellent ≥13.0 V, Low <12.7 V, Shutdown ≤10.5 V
- Lithium-ion — Excellent ≥13.6 V, Low <13.3 V, Shutdown ≤10.0 V
- State of charge graphed over time
- Requires 12 VDC external power connection

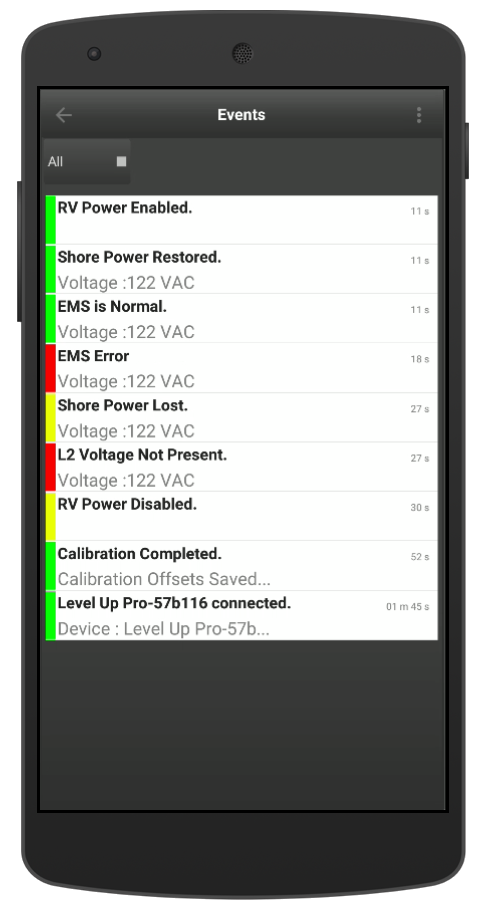

Event Logging
Every condition Level Up Pro sees — EMS faults, battery state changes, motion in Park mode — is logged on the module and binned by severity. Counts roll up onto the dashboard; the list view shows the detail, swipe to delete.
- Severity bins: Log, Attention, Trouble, Critical
- Stored on the module — survives phone swaps
- Tap for detail, swipe to delete
- Counts roll up onto the dashboard
Ready to upgrade?
Level Up Pro pairs with the free oneView app. Try the app first, then grab a module.
